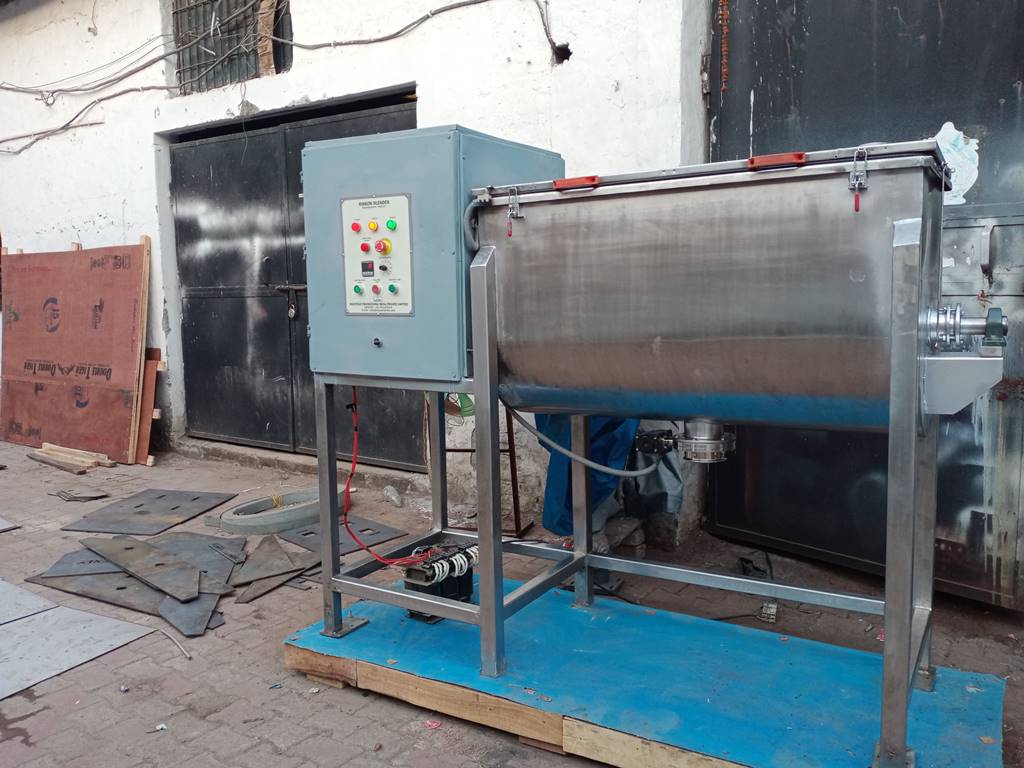

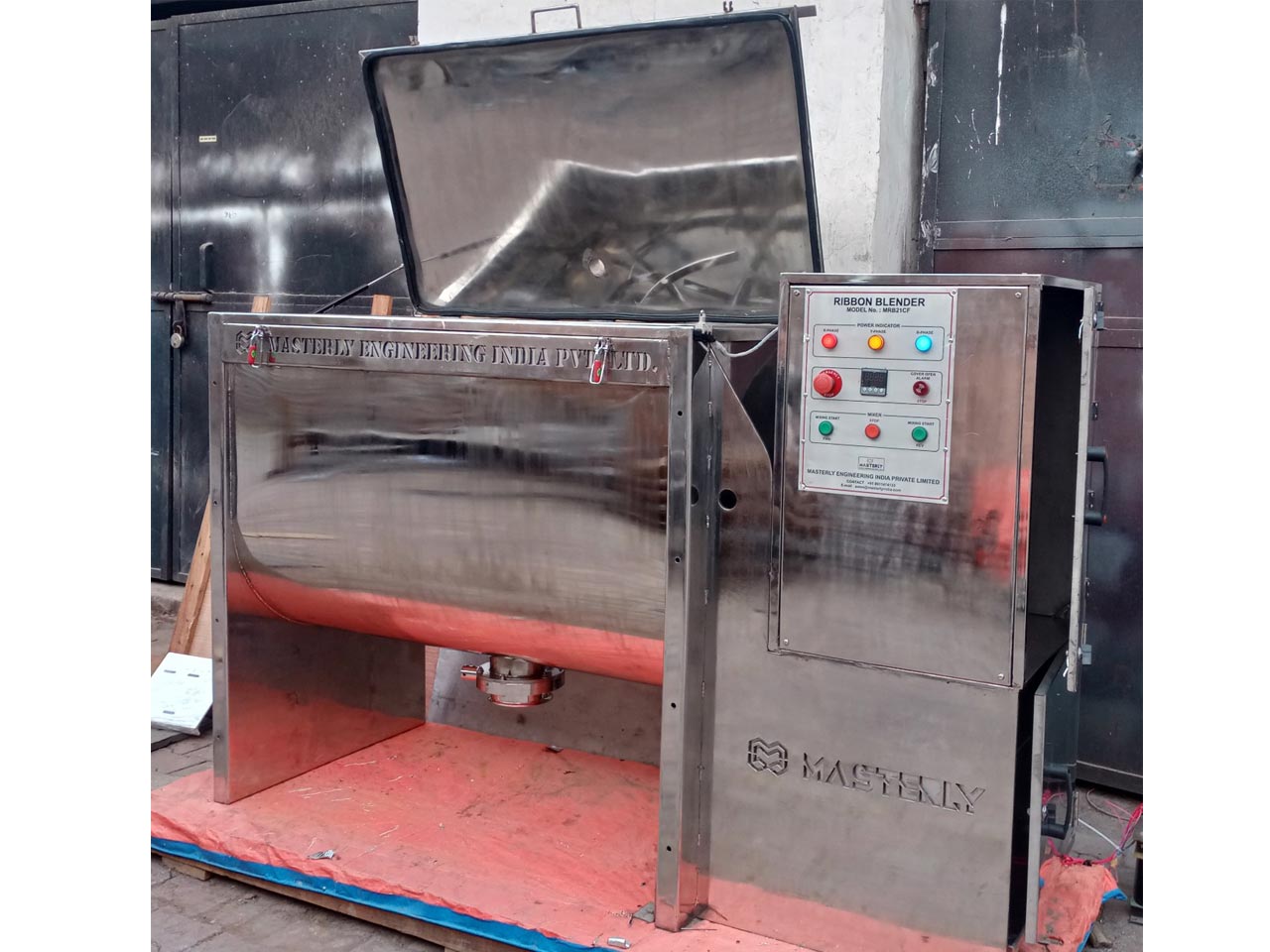

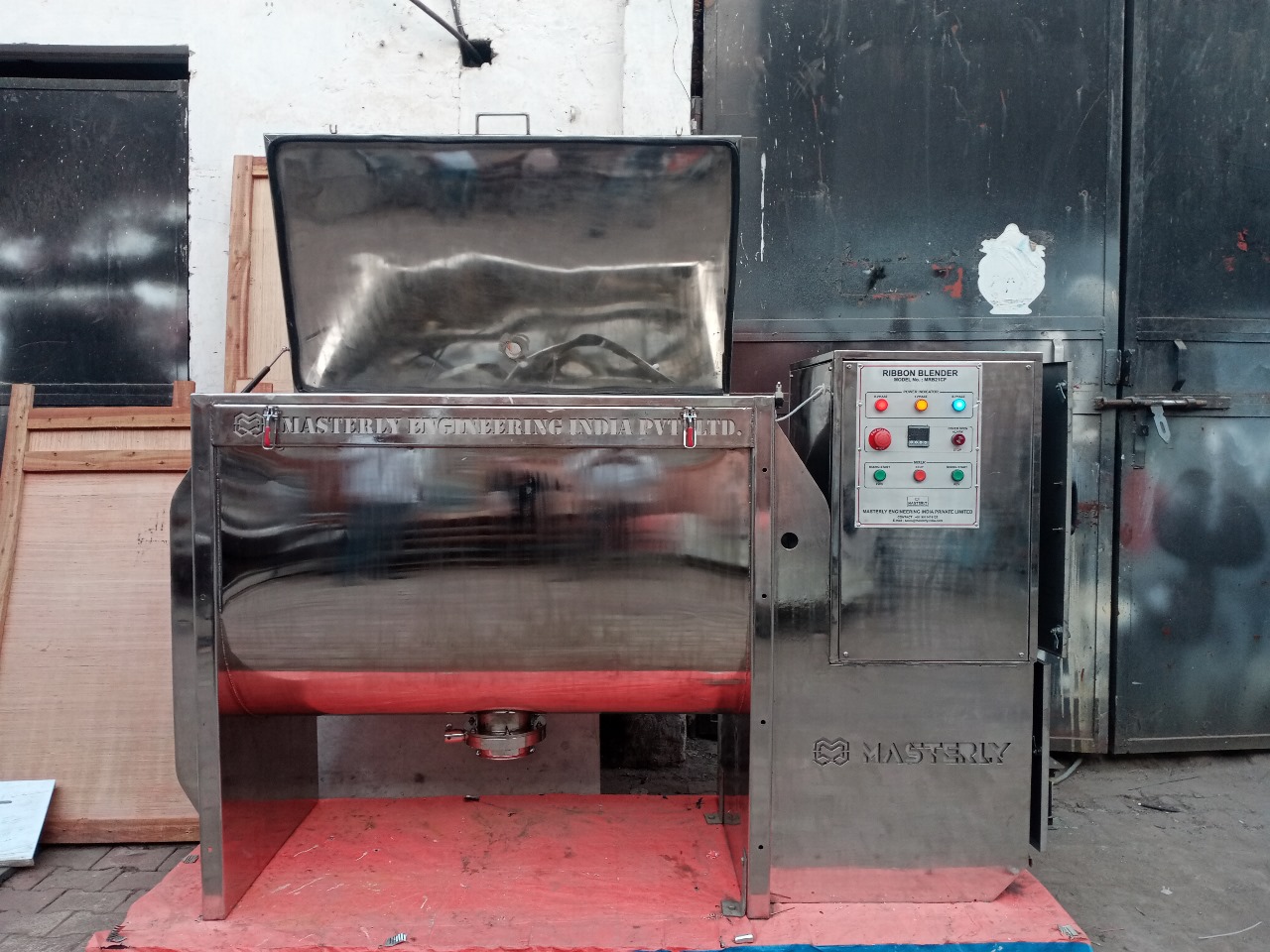

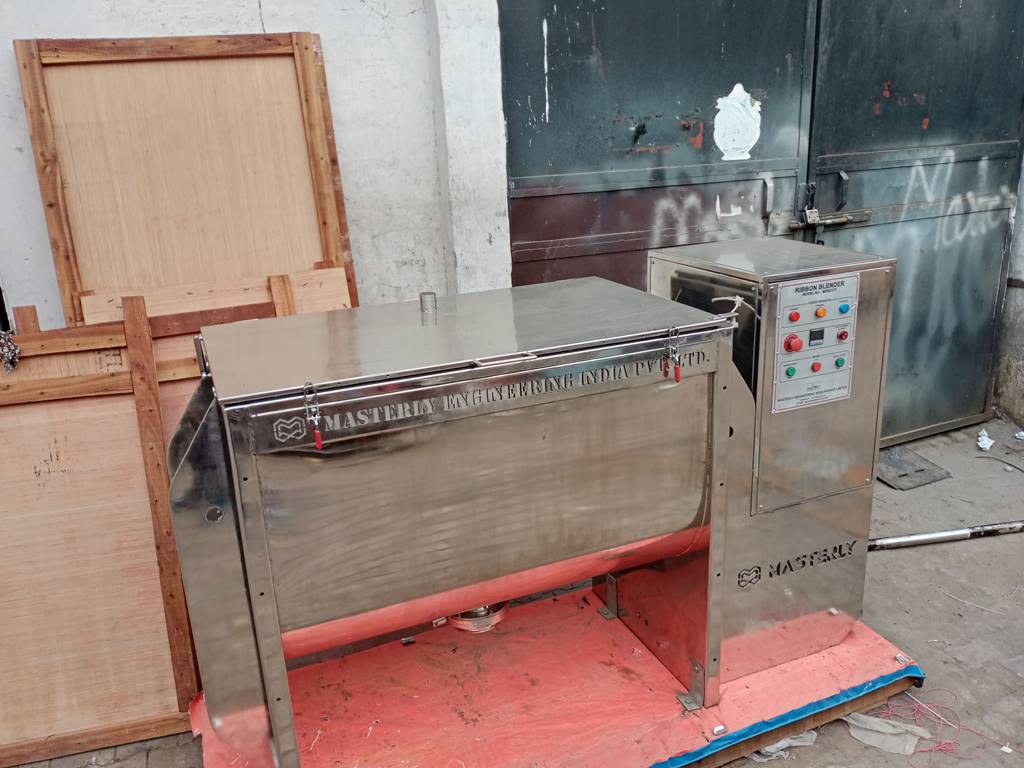

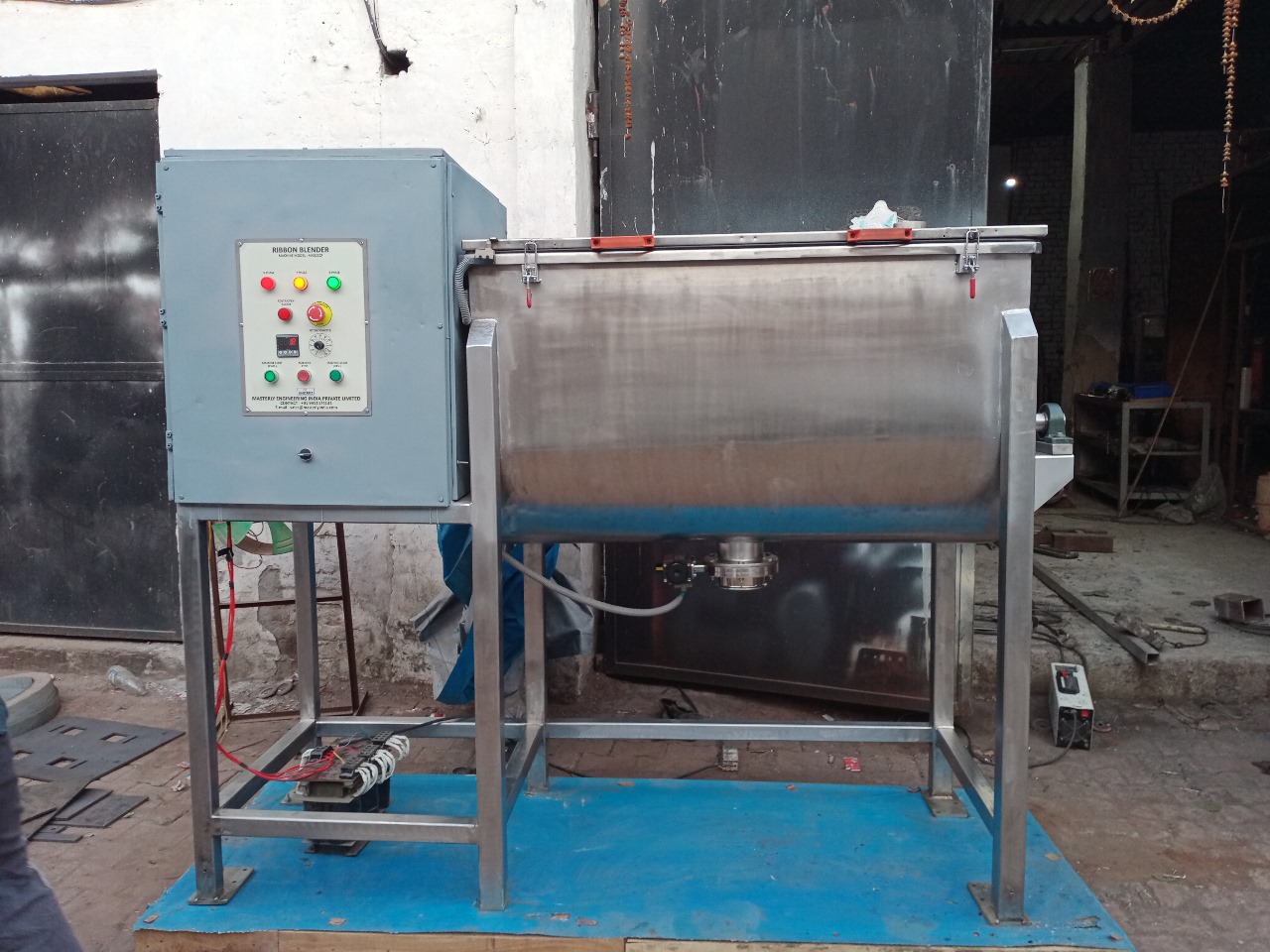

Ribbon Blender (also named ribbon mixer) is a basic industrial mixing machine. They consist, basically, of a trough-shaped shell (usually 2 to 3 times longer than it is wide) with a semicircular bottom, fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws set at a fairly close clearance to the semicircular mixer body so that no layer of material remains on the bottom of the ribbon mixer.

The most effective design of Masterly® Ribbon layout is the double spiral in which the outer ribbon moves the product in one direction and the inner ribbon moves it in the opposite direction. The ribbons rotate and move materials both radially and laterally to insure thorough blends in short cycle times.

Industrial mixer that features a horizontal shaft with a ribbon-like design. The ribbon is typically shaped like a helix or a spiral and is attached to the shaft. As the shaft rotates, the ribbon moves the materials being mixed in a gentle, sweeping motion, ensuring efficient and thorough blending.Key Components

1. Ribbon: The ribbon is the primary mixing element, responsible for moving materials around the blender.
2. Shaft: The shaft is the horizontal axis that the ribbon is attached to, providing the rotational motion needed for mixing.
3. Blender Body: The blender body is the outer casing that contains the ribbon and shaft, providing a containment area for the materials being mixed.

How it Works

1. Material Input: Materials to be mixed are added to the blender through an inlet.
2. Rotation: The shaft and ribbon rotate, creating a gentle, sweeping motion that moves the materials around the blender.
3. Mixing: The materials are mixed and blended together, ensuring uniformity and consistency.

Construction Options for Every Application,

Sanitary Construction for Pharmaceutical Applications

For industries requiring the highest level of hygiene, Masterly’s ribbon mixers are designed to meet stringent sanitary standards:

• Materials: 304SS or 316SS with polished finishes.
• Hygienic Design: Smooth surfaces and fully washable configurations, including CIP (Clean-In-Place) options
• Applications: Perfect for pharmaceuticals, nutraceuticals, and food products.

Agitators:

Masterly ribbon blenders feature double Ribbon fit to a solid stainless-steel shaft. We also offer paddle style agitators, as well as ribbon mixers with scraper blades.

Shaft Seals

Our ribbon blenders come standard with our Masterly packing glands. Packing glands feature a Teflon style rope which is compressed against the end plate, creating a barrier to keep the mixing product in the trough. These work very well for both dry and wet mixing applications.

As an upgrade for your blender, we also offer air purged seals for powders or slurry mixes. These air seals are ideal for scenarios requiring caustic wash downs and sanitary requirements. These seals are easy to disassemble for regular cleaning and offer years of service.

Optional: Mechanical Seal

Drives Motor

Masterly Blenders utilize Direct drive style gear motors, Chain Drive, or Belt Drive to power our equipment. These drive systems have proven highly reliable and require less maintenance.

Our standard drive motors offer a service factor for continual mixing throughout the day. Based on the capacity of your equipment we offer a drive motor consistent for normal mixing conditions; although we can modify this to higher powered equipment, different RPM and variable speed drive systems if requested.

Discharge system

Based on your mixing requirements your blender can be fitted with different styles of discharge systems. Our most common style discharge is a butterfly valve, which works well in wet mixing solutions as well as dry. For dry mixing we offer the Masterly slide gate in manually operated or pneumatically actuated. The benefit of our slide gate system is zero ‘dead spot’ in the mixer.

Our blender’s standard height is to set the discharge 24” from the ground, allowing for a pallet and barrel below the equipment. This height can be increased or decreased based on your needs.

Covers

Our blenders come standard with hand open lids. As an optional feature, we can add a Hydraulic or pneumatic cylinder for lifting.

Safety Systems

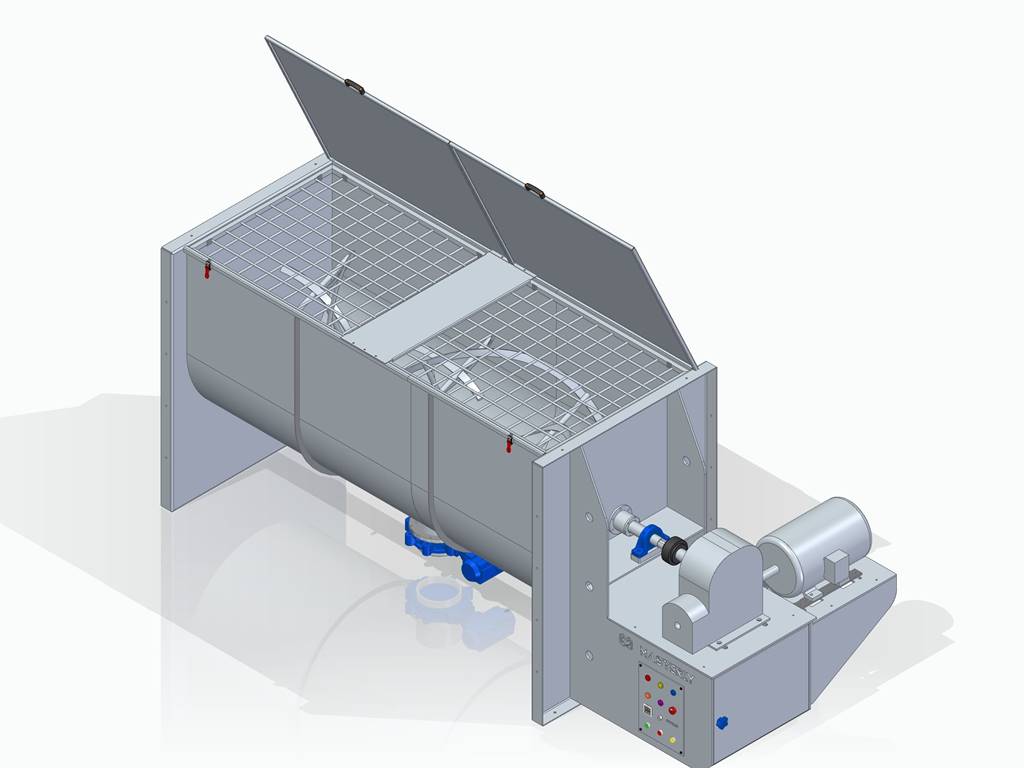

Masterly ribbon blenders are built with safety as our highest priority. Masterly ribbon blenders standard is to include ALL of our available safety equipment. These systems include micro switches to prevent the agitator from turning when the lid is open. We also offer safety grates on the top and discharge. All safety labeling is standard as well on Masterly equipment.

Packaging Product

Ribbon mixing machine is well package with cover cellophane and wood crate during shipment. To make sure that the product is safety and no damage during delivery to the customer.

• Easy to install, easy to clean and it is fast when mixing.
• Can be customizing according to function, speed adjustment, valve, stirrer, top cover and sizes.
• Mild mixing which will not break the physical size of material
• More loading factor
• Full welding at all connection parts.
• All 304, 316 stainless steel, and full mirror polished inside tank.
• Special ribbon design makes no dead angle when mixing.
• With safety interlock, safety grid and wheels.
• One-year warranty, life-long service
• Provide accessory parts in favorable price
• Update configuration and program regularly
• Respond to any question in 24 hours

Loading system

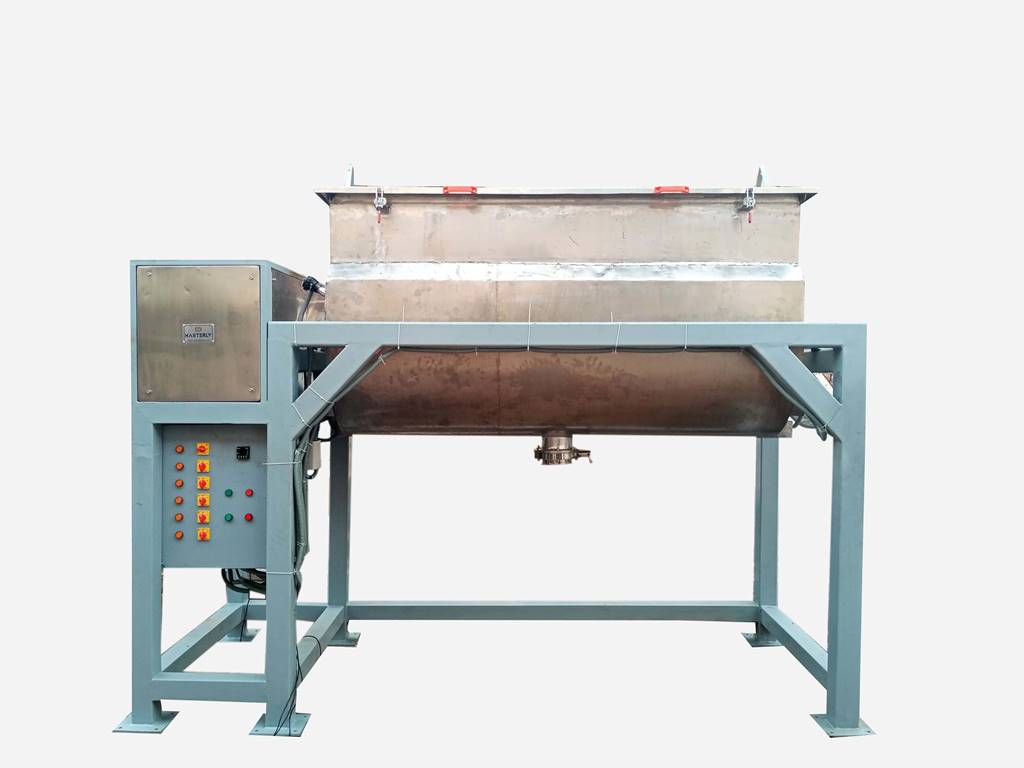

In order to make the operation of industrial ribbon blender machine more convenient, stairs for small model mixer, working platform with steps for larger model mixer, or screw feeder for automatic loading are all available.

Link-  screw conveyor

Optional Arrangement

1. Jacketed ribbon Blender design for a process that required heating and cooling.
2. Liquid spray
3. Load cell
4. PLC & touchscreen
5. VFD
6. Flame/ Explosion-proof motor
7. Dust collection
8. Visible window
9. Steel structure and stairs
10. A full line including feeding, mixing, weighing (auger filling) and packing

Ribbon blenders are widely used in various industries due to their efficient mixing and blending capabilities. Some common applications include:

Food Processing

1. Baking: Mixing ingredients for baked goods, such as cakes, cookies, and bread.
2. Snacks: Blending seasonings and ingredients for snack foods, like chips and crackers.
3. Dairy: Mixing dairy products, such as yogurt and cheese.

Pharmaceuticals

1. Powder Blending:. Mixing active ingredients and excipients for pharmaceutical products.
2. Granule Blending: Blending granules for use in pharmaceutical applications.

Chemicals

1. Powder Handling: Mixing and blending powders for various chemical applications.
2. Granule Handling: Blending granules for use in chemical processes.

Other Industries

1. Cosmetics: Mixing ingredients for cosmetic products, such as skincare and haircare.
2. Animal Feed: Blending ingredients for animal feed products.

The Masterly Ribbon Blender is a high-quality mixing machine designed for various industries. Here are some key specifications:

Technical Specifications

1. Capacity: 5 kg to 25000 kg (or other capacities as per requirement)
2. Material: Stainless Steel (SS) or other materials as per requirement
3. Ribbon Design: Unique ribbon design for efficient mixing and blending
4. Motor Power: Variable speed motor for optimal mixing performance
5. Dimensions: Customizable dimensions to fit specific applications

Why Choose Masterly Ribbon Mixers?

Masterly Engineering Ribbon Mixers are chosen for their exceptional quality, reliability, and performance. Here are some reasons why:

High-Quality Construction

1. Durable Materials: Built with durable materials to ensure a long lifespan.
2. Precision Engineering: Designed with precision engineering for optimal performance.

Efficient Mixing

1. Unique Ribbon Design: Unique ribbon design for efficient mixing and blending.
2. Variable Speed: Variable speed options for optimal mixing performance.

Customization

1. Customizable Design: Customizable design to meet specific requirements.
2. Material Selection: Options for material selection to suit various applications.

Reliability and Support

1. Reliable Performance: Reliable performance and minimal downtime.
2. Excellent Support: .Excellent customer support and after-sales service.

Compliance and Certifications

1. CE Certified: Compliant with CE standards for safety and quality.
2. ISO Certified: Compliant with ISO standards for quality and performance.
